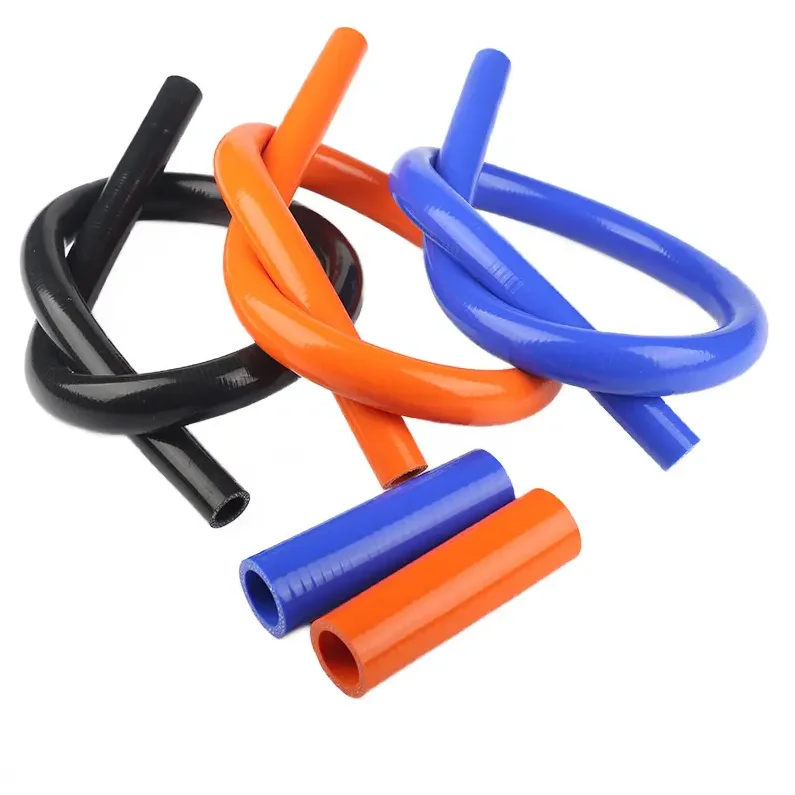

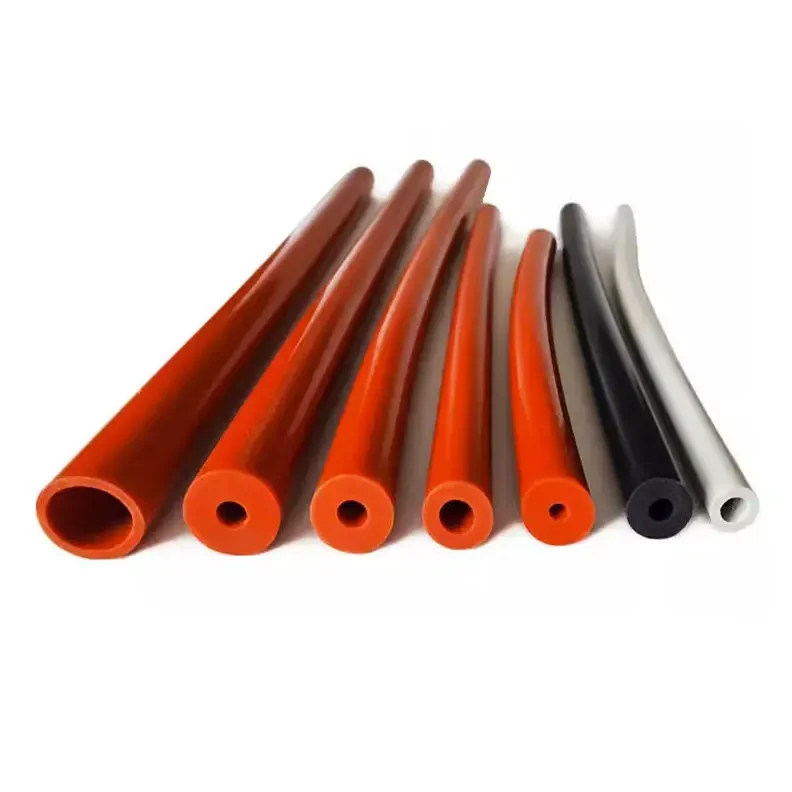

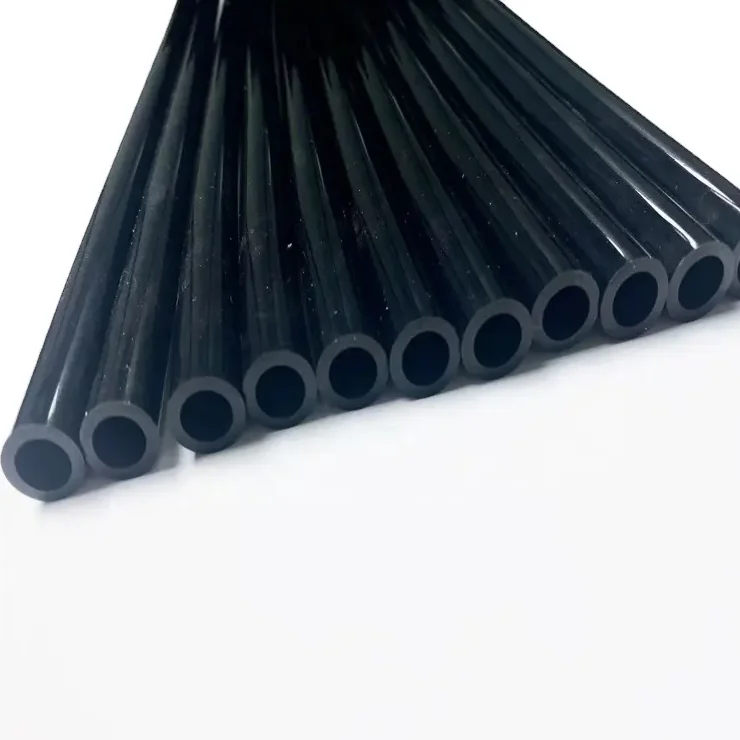

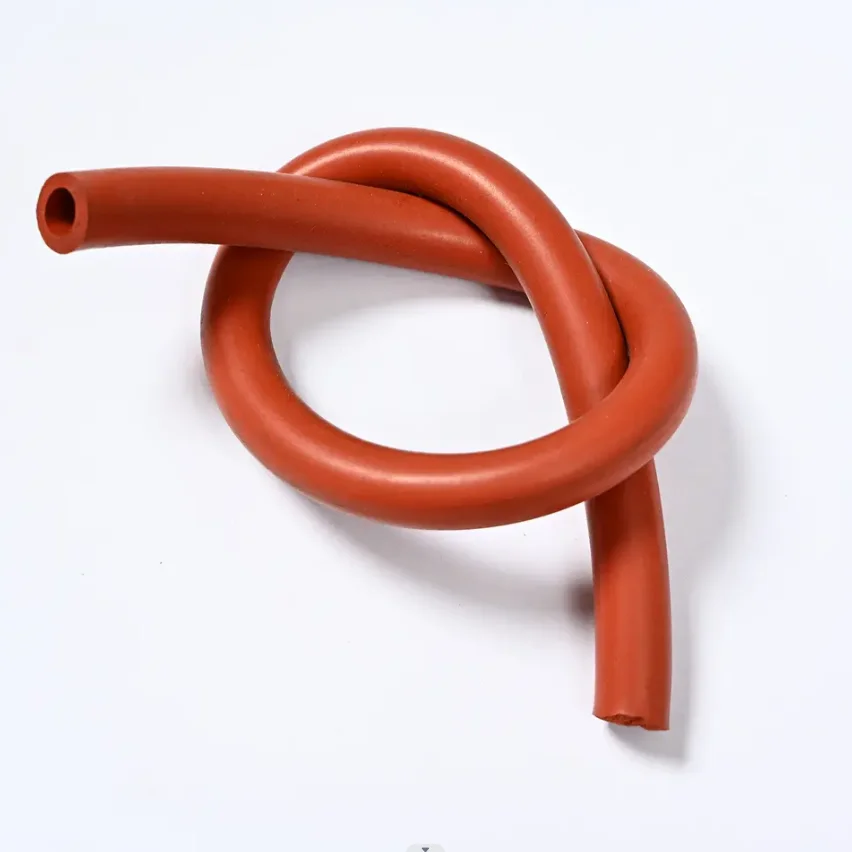

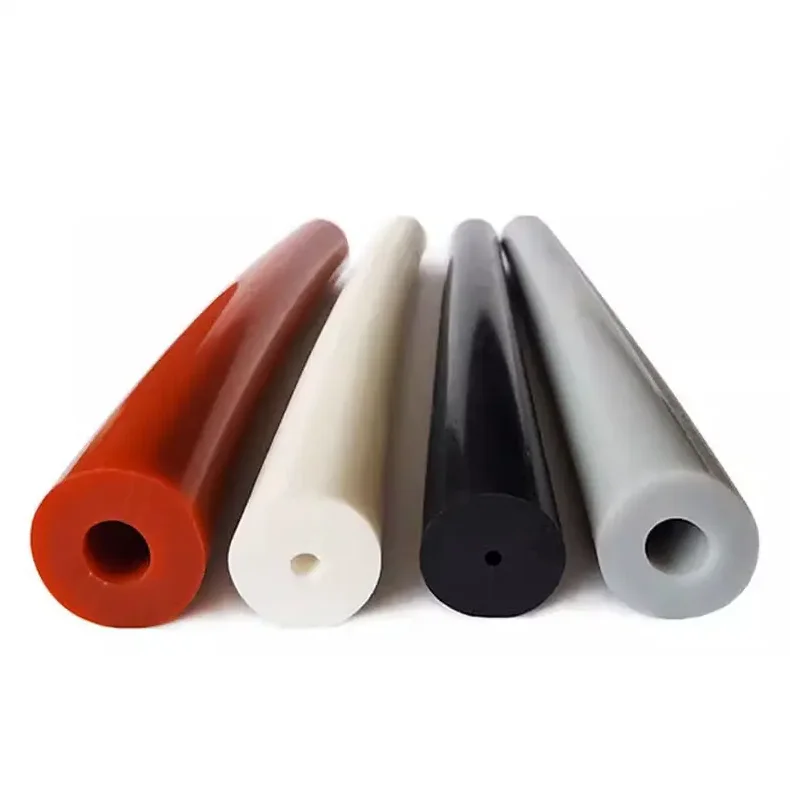

Silicone Tube

Common silicone tubes include medical silicone tubes, food-grade, industrial silicone tubes, silicone special-shaped tubes, and silicone tube accessories.

Performance characteristics

Features:

①Continuous use temperature range: -60℃~200℃;

②Soft, arc-resistant, and corona-resistant;

③ Various specifications can be customized according to customer requirements.

④Harmless, non-toxic, and odorless

⑤High pressure resistance and environmental protection

Standard colors: Black, red, blue, white, gray, green, transparent (other colors can be produced on request).

Applications

  1. Transportation: Application in the shipbuilding industry.
  2. Radio and motor: in the telecommunications industry.
  3. Instruments and instrument industry applications.
  4. Application in the aviation industry.
  5. Suitable for home appliances, lighting, medical, beauty, and hairdressing equipment, etc.
SpecSizeThicknessDensity
IDODStandardMix
0.8*1.80.8±0.11.8±0.10.50.381.18±0.02
1.0*2.01.0±0.22.0±0.20.50.381.18±0.02
1.2*2.21.2±0.22.2±0.20.50.381.18±0.02
1.5*2.51.5+0.4/-0.22.5+0.4/-0.20.50.381.18±0.02
2.0*3.02.0+0.4/-0.23.0+0.4/-0.20.50.381.18±0.02
2.5*3.52.5+0.4/-0.23.5+0.4/-0.20.50.381.18±0.02
3.0*4.03.0+0.4/-0.34.0+0.4/-0.30.50.381.18±0.02
3.5*4.53.5+0.4/-0.34.5+0.4/-0.30.50.381.18±0.02
4.0*5.04.0+0.5/-0.45.0+0.5/-0.40.50.381.18±0.02
4.5*5.54.5+0.5/-0.45.5+0.5/-0.40.50.381.18±0.02
5.0*6.05.0+0.5/-0.46.0+0.5/-0.40.50.381.18±0.02
6.0*7.06.0+1.0/-0.57.0+1.0/-0.50.50.381.18±0.02
7.0*8.47.0+1.0/-0.58.4+1.0/-0.50.70.561.18±0.02
8.0*9.48.0+1.0/-0.59.4+1.0/-0.50.80.561.18±0.02
9.0*10.69.0+1.0/-0.510.6+1.0/-0.50.80.681.18±0.02
10*11.610.0+1.0/-0.511.6+1.0/-0.50.80.681.18±0.02
11.0*13.011.0+1.0/-0.513.0+1.0/-0.510.891.18±0.02
12.0*14.012.0+1.0/-0.514.0+1.0/-0.510.891.18±0.02
13.0*15.013.0+1.0/-0.515.0+1.0/-0.510.891.18±0.02
14.0*16.014.0+1.0/-0.516.0+1.0/-0.510.891.18±0.02
15.0*17.015.0+1.0/-0.517.0+1.0/-0.510.891.18±0.02
16.0*18.016.0+1.0/-0.518.0+1.0/-0.510.891.18±0.02
17.0*19.017.0+1.0/-0.619.0+1.0/-0.610.891.18±0.02
18.0*20.018.0+1.0/-0.620.0+1.0/-0.610.891.18±0.02
19.0*22.019.0+1.0/-0.622.0+1.0/-0.61.51.351.18±0.02
20.0*23.020.0+1.0/-0.623.0+1.0/-0.61.51.351.18±0.02
