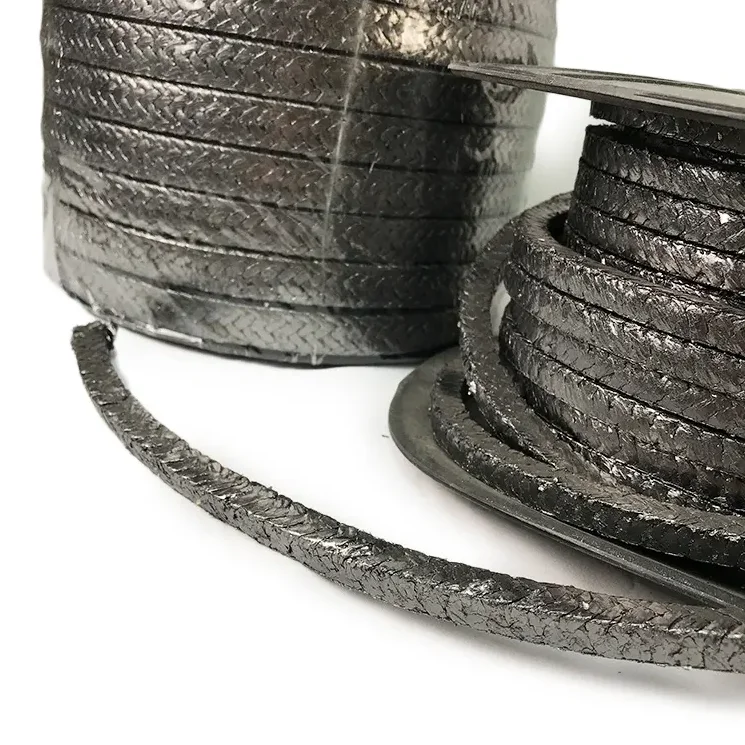

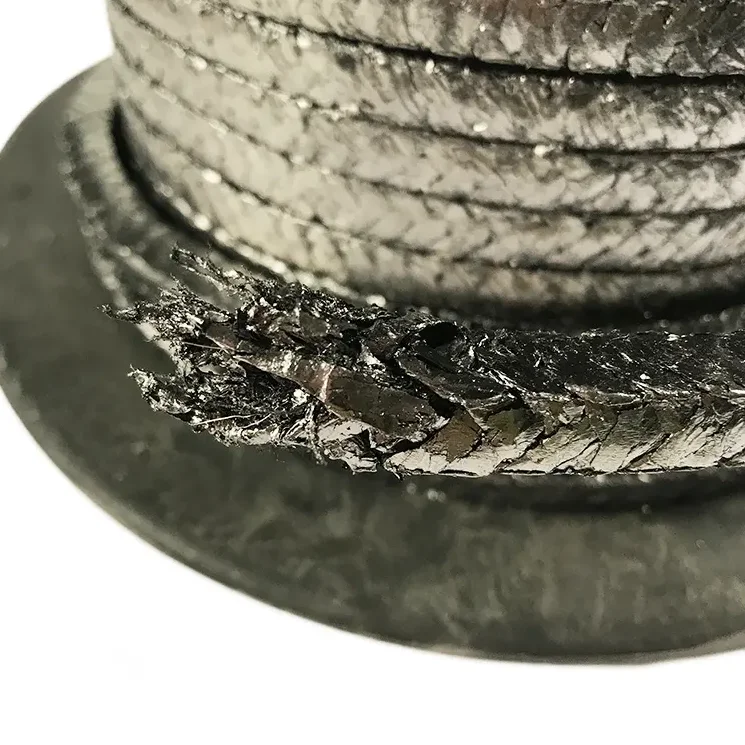

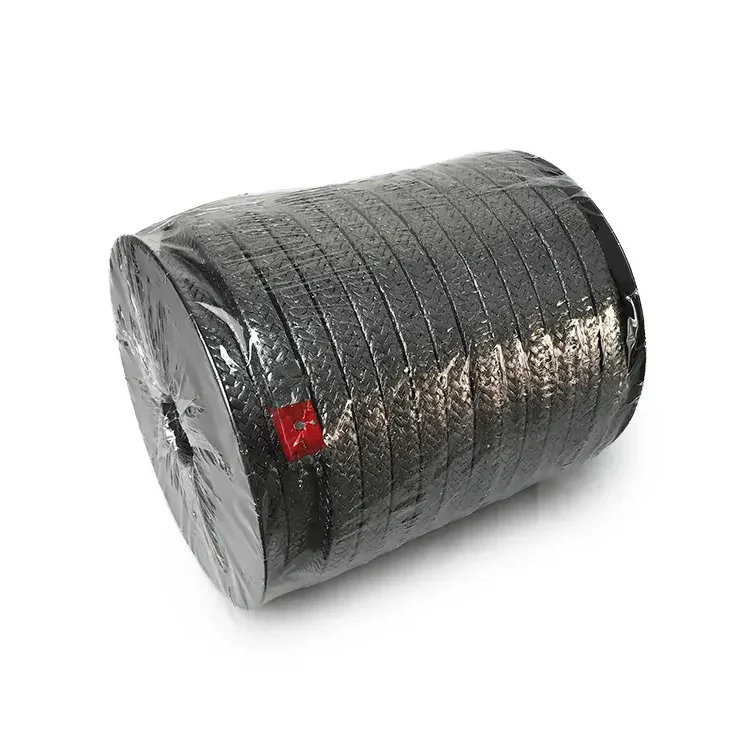

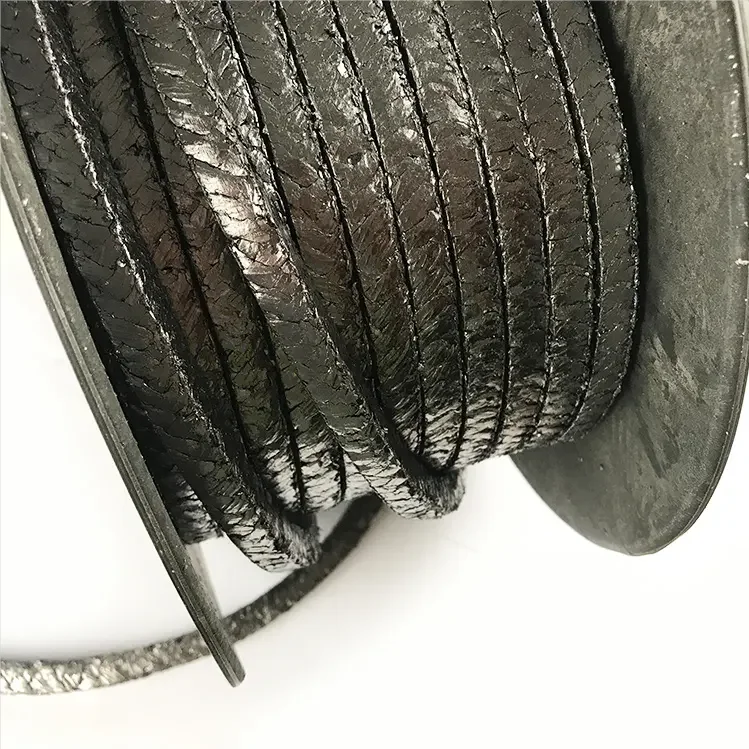

Flexible Graphite Packing Seal
Flexible Graphite Packing Seal
Made of flexible graphite yam and reinforced with several high temperature-resistant Inconel wires, having much high pressure
tightness and stable performances, applicable for static seal packing under high temperature and pressure.
| Temperature | “-204~+650 ℃ |
| Pressure | 9-45 Mpa |
| Shaft speed | 2-15 m/s |
| PH Range | 0~14 |
| Density(appr.) | 1.1~1.4 g/cm3 |
Packing seal is also called sealing filler. It is usually made of relatively soft linear materials and is filled into the sealing cavity with strips with a square cross-sectional area to achieve sealing.
The material mainly uses graphite and various fibers as the main raw materials and is reinforced according to different requirements.
Expanded graphite packing seal, also known as flexible graphite packing, is made of flexible graphite wires woven through the heart. It has good self-lubricating and thermal conductivity, a small friction coefficient, strong versatility, good flexibility, and high strength, and is suitable for shafts. Has a protective effect and other advantages
This packing is a universal packing and is widely used in all walks of life.
