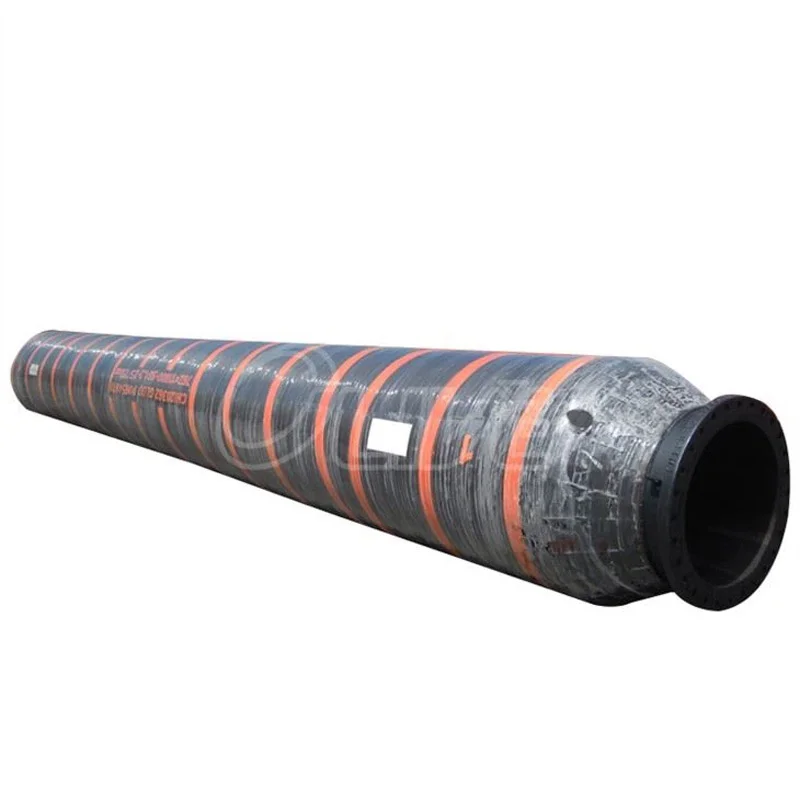

Marine Oil Conveying Rubber Hose
Marine Oil Conveying Rubber Hose

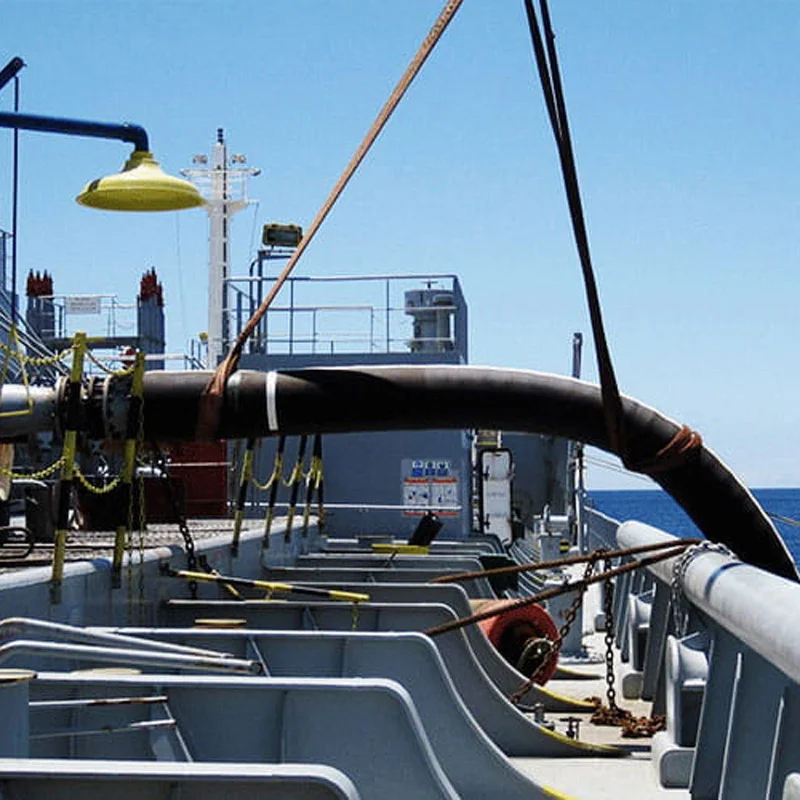

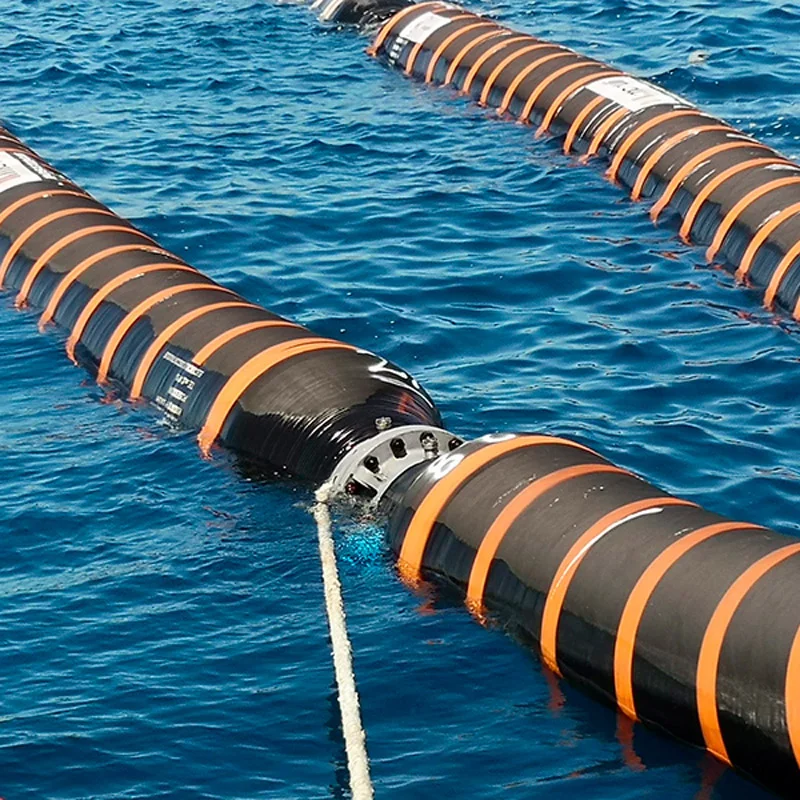

Structure： It is composed of an oil and seawater-resistant inner layer, internal fabric protective layer, metal skeleton layer (reinforcement layer), adhesive layers and anti-corrosion, weather resistance, and seawater-resistance protective cover. APPLICATIONS： For carrying natural gas, petroleum, etc. on the sea floor. SPECIFICATION： Q/HOY04-2011
| Hose size | Inside Diameter | Reinforcement Diameter | Outside Diameter | Working Pressure | |
| mm | mm | mm | Mpa | Psi | |
| 4sp-51-35 | 51±1.0 | 63±1.0 | 69±1.5 | 34.5 | 5000 |
| 4sp-64-35 | 64±1.2 | 77±1.0 | 84±1.5 | 34.5 | 5000 |
| 4sp-76-35 | 76±1.4 | 101±1.5 | 107±2 | 34.5 | 5000 |
| 4sp-89-35 | 89±1.4 | 114±1.5 | 120±2 | 34.5 | 5000 |
| 4sp-102-35 | 102±1.5 | 127±1.5 | 133±2 | 34.5 | 5000 |
| 4sp-127-35 | 127±1.5 | 152±1.5 | 158±2 | 34.5 | 5000 |
| 6sp-51-70 | 51±1.0 | 66±1.0 | 72±1.5 | 69 | 10000 |
| 6sp-64-70 | 64±1.2 | 81±1.0 | 88±1.5 | 69 | 10000 |
| 6sp-76-70 | 76±1.4 | 109±1.5 | 116±2 | 69 | 10000 |
| 6sp-89-70 | 89±1.4 | 122±1.5 | 129±2 | 69 | 10000 |
| 6sp-102-70 | 102±1.5 | 135±1.5 | 142±2 | 69 | 10000 |
| 6sp-127-51.7 | 127±1.5 | 160±1.5 | 166±2 | 51.7 | 7500 |
| Hose size | proof pressure | Burst Pressure | Min.Bend Radius | Reference Weight | ||
| Mpa | Psi | Mpa | Psi | mm | kg/m | |
| 4sp-51-35 | 69 | 10000 | 87.5 | 12500 | 900 | 5.7 |
| 4sp-64-35 | 69 | 10000 | 87.5 | 12500 | 1100 | 6.7 |
| 4sp-76-35 | 69 | 10000 | 87.5 | 12500 | 1200 | 16.2 |
| 4sp-89-35 | 69 | 10000 | 87.5 | 12500 | 1300 | 18.4 |
| 4sp-102-35 | 69 | 10000 | 87.5 | 12500 | 1400 | 20.3 |
| 4sp-127-35 | 69 | 10000 | 87.5 | 12500 | 1500 | 29.3 |
| 6sp-51-70 | 103.4 | 15000 | 155.3 | 22500 | 1000 | 7.7 |
| 6sp-64-70 | 103.4 | 15000 | 155.3 | 22500 | 1200 | 9.2 |
| 6sp-76-70 | 103.4 | 15000 | 155.3 | 22500 | 1300 | 26.3 |
| 6sp-89-70 | 103.4 | 15000 | 155.3 | 22500 | 1400 | 32.1 |
| 6sp-102-70 | 103.4 | 15000 | 155.3 | 22500 | 1600 | 39.5 |
| 6sp-127-51.7 | 103.4 | 15000 | 129.3 | 18750 | 1800 | 46.6 |
